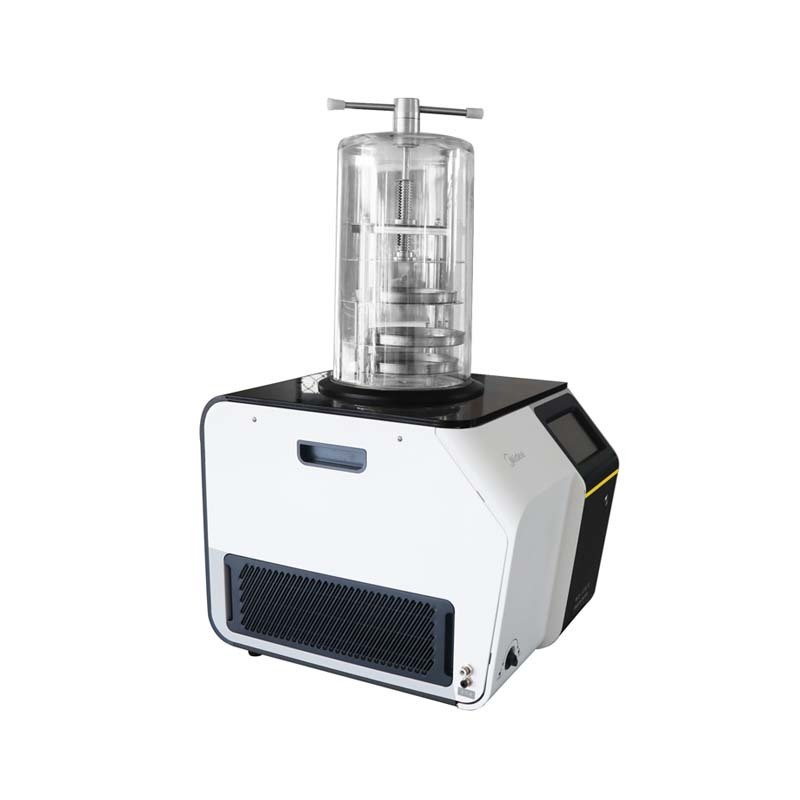

MD-10N/B Freeze Dryer with Pressure Cap GMP Compliant Seal Technology

Name: MD-10N/B Freeze Dryer with Pressure Cap GMP Compliant Seal Technology
Brand: Hefei Midea Biomedical Co., Ltd
SKU: MD-10N/A.
Price: 2,500.00 USD
Availability: InStock

Einzelheiten zum Produkt:

Herkunftsort:	Hefei Stadt China
Markenname:	Midea Biomedical
Zertifizierung:	CE. ISO9001 ,UL
Modellnummer:	MD-10N/A.

Einzelheiten

Herkunftsort:

Hefei Stadt China

Markenname:

Midea Biomedical

Zertifizierung:

CE. ISO9001 ,UL

Modellnummer:

MD-10N/A.

Modell Nr.:

MD-10N/b

Trocknerbereich (㎡）:

0,08

Fähigkeit, Wasser zu fangen (kg/Charge):

Scherzflaschenmenge φ12mmmm:

560

Scherzflaschenmenge φ16mmmm:

285

Schering Flaschenmenge φ22mmmm:

165

Kaltkammergröße (mm):

Φ250 × 150

Kaltfalle die niedrigste Temperatur (° C):

≤-56 (keine Last)

Endvakuum (Pa):

≤ 5 (keine Last)

Stromverbrauch KW.H (220V50Hz):

0,95

Amibienttemperatur (° C):

≤25

Gesamtgröße ((mm):

610 (l) × 482 (w) × 455 (h) +440

Gewicht (kg):

Heiztemperatur (° C):

NEIN

Hervorheben:

High Light

Hervorheben:

GMP compliant freeze dryer

freeze dryer with pressure cap

lab freeze dryer seal technology

Handelsinformationen

Min Bestellmenge:

10 Einheit

Preis:

US $ 5000 / 1 unit

Verpackung Informationen:

840 mm*720 mm*700 mm

Lieferzeit:

7 Arbeitstag

Zahlungsbedingungen:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Versorgungsmaterial-Fähigkeit:

8000 EINHEITEN PRO JAHR

Beschreibung des Produkts

MD-10N/B Freeze Dryer with Pressure Cap GMP Compliant Seal Technology

product info.

MD-10N/B Integrated Freeze Dryer and Vial Sealing System

Consolidate your sample preservation workflow with this all-in-one sealing lyophilizer:

Vacuum Integrity: Seal vials at ≤0.01 mbar residual pressure with inert gas purging
Material Clarity: Monitor sublimation through high-tolerance polycarbonate chamber
Operational Efficiency: PID-controlled heating accelerates cycles by 25%
Data Transparency: Store 50+ profiles for instant replication of critical protocols
Heavy-Duty Reliability: Precision-cast 61kg frame mitigates vibration in sensitive labs

Unique value: Eliminates transfer steps between drying and sealing preserving sample integrity

Product Series Model Comparison

Model Name	MD-10N/A	MD-10N/B	MD-10N/C
Dryer area(㎡)	0.12	0.08	0.12
Ability to capture water(Kg/batch)	3
Schering bottle quantity Φ12mm	920	560	920
Schering bottle quantity Φ16mm	480	285	480
Schering bottle quantity Φ22mm	260	165	260
Eggplant shape bottle	0	0	8
Plate load capacity (L)	1.5	1	1.5
Plate size(mm)	Φ200	Φ180	Φ200
Plate distance (mm)	70
Tray quantity(pc)	4	3	4
Cold chamber size(mm)	Φ250×150
Cold trap the lowest temperature(°C)	≤-56 (No load)
Ultimate vacuum(Pa)	≤5 (No load)
Power Consumption kw.h(220V50Hz)	0.95
Amibient temperature(°C)	≤25
Overall dimension(mm)	610(L)×482(W)×455(H)+440
Weight(kg)	55	61	57
Heating Temperature(°C)	No
